Friday, January 08, 2010

New features in JEE 6

JEE 6 new features:
profiles, pruning, and extensibility
Enterprise JavaBeans (EJB), Java Servlet, and Java Persistence API (JPA)
new APIs/technologies: Java API for RESTful Web Services (JAX-RS) and Java Contexts and Dependency Injection (JCDI/Web Beans)

  • Extensibility: This mechanism provides a way to include additional technologies and frameworks that are not part of the standard platform.

  • Profiles: This build on the standard Java EE platform technologies, sometimes using only a subset of those technologies, and sometimes adding Java technologies that are not part of the standard platform.

  • Pruning: Pruning provides a way to remove some technologies from the platform.

  • Enterprise JavaBeans 3.1
  • Removal of local business interface: EJB 3.0 removed the complex home and remote interfaces and made way for the plain old Java interface (POJI). EJB 3.1 goes one step further by dictating that business interfaces also are not mandatory.

  • @Stateless
    public class StockQuoteBean {...}

  • Introduction of Singleton beans: The concept of Singleton beans was introduced primarily to share application-wide data and support concurrent access. All Singleton beans are transactional and thread safe by default, making way for flexible concurrency options. Java EE 6 also introduces concurrency annotations to perform locked read/write operations on getter and setter methods.

  • @Singleton
    public class CounterBean {
    private int count;
    public void initialize() {

  • Packaging EJB components directly in a WAR file: One of the major advancements in EJB 3.1 is the option for including EJB in a WAR file directly instead of creating a separate JAR file.

  • Embeddable API for executing EJB in Java SE environment: The idea behind this feature is to allow EJBs to run in Java SE environments; that is, the client and the EJB run in the same JVM. The javax.ejb.EJBContainer class represents an embeddable container. Embeddable containers support EJB Lite.

  • Asynchronous Session Bean: A session bean can support asynchronous method invocations. Bean methods annotated with @Asynchronous are invoked asynchronously. Asynchronous methods can return a Future object of the java.util.concurrent API. This will be useful for the client to get the status of the invocation, retrieve the return value of a method, check for an exception, or even cancel the invocation.

  • EJB Lite: The concept of profiles is applied to the EJB specification as well. Many enterprise applications do not require the complete set of features in EJB, so EJB Lite, a minimal subset of the EJB API, is introduced in EJB 3.1. EJB Lite provides vendors the option to implement a subset of the EJB APIs within their products. Applications created with EJB Lite can be deployed on any server that supports EJB technology, irrespective of whether it is full EJB or EJB Lite.

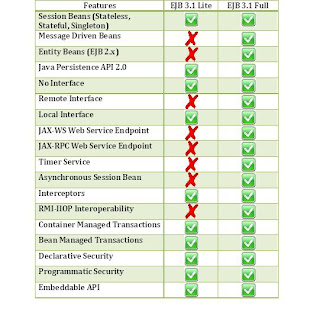

  • EJB Lite has the following subset of the EJB API:
    * Session bean components (Stateless, stateful, singleton session beans)
    * Supports only synchronous invocation
    * Container-managed and bean-managed transactions
    * Declarative and programmatic security
    * Interceptors
    * Support for deployment descriptor (ejb-jar.xml)

    Servlet 3.0 will introduce are:
  • Support for Annotations: Instead of making an entry in a deployment descriptor (web.xml), developers can use annotations to mark a servlet.

  • @WebServlet is used to mark a class that extends HttpServlet as a servlet.
    @WebFilter is used to mark a class that implements Filter as a filter
    @WebInitParam is used to specify an init parameter
    @WebListener is used to specify a listener

    public class StockQuoteServlet extends HttpServlet {...}

    @WebServlet(name="StockQuoteServlet", urlPatterns={"/stockquote","/getQuote"})
    public class StockQuoteServlet extends HttpServlet {...}

    public class LoginFilter implements Filter {...}

  • Web fragments: Web fragments are meant to provide modularity. They provide logical partitioning of the deployment descriptor web.xml so that frameworks such as Struts and JavaServer Faces (JSF) can have their own piece of information added in the JAR file, and the developer doesn't have to edit web.xml.

    Web fragments are identified by using web-fragment as the root element. Developers can use all the elements in the deployment descriptor. The only condition is that the root element must be and hence have the name web-fragment.xml. This element is typically placed in the WEB-INF\lib folder. Any JAR file placed in the WEB-INF\lib folder can include the web fragment.

    When an application has multiple web fragments, the order of execution can be resolved using absolute ordering or relative ordering. In both cases, XML tags are used to identify the order. Absolute ordering is specified using in web.xml and relative ordering is specified using in web-fragment.xml.

    When the element is not mentioned or set to false in the deployment descriptor, the container skips processing web.xml and processes annotations and web fragments. If is set to true, then the container skips processing annotations and web fragments and processes based on the information available in web.xml, because this takes precedence.

  • Asynchronous processing: Servlets allow asynchronous processing in Java EE 6 to support AJAX. A servlet often has to wait for a response from a resource such as a database or a message connection. Asynchronous processing avoids the blocking request so that the thread can return and perform some other operation. Developers can mark servlets as asynchronous by setting the value true to the asyncSupported attribute of the @WebServlet or @WebFilter annotation. In addition to the annotation, some new APIs such as AsyncContext have been introduced, and methods such as startAsync have been added to the ServletRequest and ServletResponse classes.

  • JAX-RS 1.1 and JCDI 1.0
  • JAX-RS fully supports REST principles, and provides POJO resources to which developers can add annotations to make them support REST. Due to the nature of HTTP, JAX-RS supports only stateless interactions. Sun provides a reference implementation for JAX-RS codenamed Jersey.

  • JCDI allows developers to bind Java EE components to lifecycle contexts, to inject these components, and to enable them to support loosely coupled communication.
